SM155-4 1.25 Watt Wire Wound 4 Terminal Resistor


SM155-4 1.25 Watt Wire Wound 4 Terminal Resistor

Technical Information

Mounting
Thru-hole
Resistance
.001Ω to 100Ω
Tolerance
to ±.005%
TCR Char.
±15 PPM /°C.
Max Watts
1.25
Lead Free
Yes
Max Amps
10
Temperature
-65°C. to +275°C.
Length
13.21mm (.520")
Diameter
5.08mm (.200")
Stability
to ±.001% per year at +25°C
Type
4-Terminal Axial
Amps
10
Lead Dimensions
.0285" dia. X 1.400" long (min.)
Special Resistance
.001Ω @ .1W to .015Ω @ 1.25W

  • Detailed Images

  • Details and Order Info

  • Electrical & Physical Specs

  • Attributes & Derating Table

Click the arrows for more detailed images:

CAN'T FIND THE PART TO MATCH YOUR SPECS?

Then let PRC custom manufacture your wire wound resistor, sensor, or shunt with some of the shortest lead times in the industry. Engineering samples can be supplied at no cost to you in 7-10 days for most jobs. Computer tracking charts are available for reference with certain part types. If you need a specific marking on your part(s) we will custom print your order with the marking you desire & at no additional cost to you. If needed, you can interchange the size, shape, lead dimension, wattage, voltage, current, Ω value, tolerance, & TCR characteristics with most part types. Visit our SM 4-Terminal Series & see if one of our other parts from the same series will satisfy all your requirements. If you still do not find a part that meets the exact specifications your application requires, simply click Contact/Request For Quote & fill in all known spec fields. One of our highly trained engineers will review your objectives and see if we can modify one of our standard parts to satisfy all your requirements. If you are unsure how to accurately complete this form, give us a call & our sales department will be happy to assist you.

ORDERING PROCEDURE

Our sales department is available to provide price, delivery, lead time & all other pertinent ordering instructions to companies within the U.S.A. If you wish to place an order in the United States, simply give us a call & ask for the Sales Department, our contact information is at the very top of every page. For companies outside the U.S.A., we have sales representatives in over 30 different countries to assist you. Click the link International Sales Representative Map to locate the sales representative nearest to your region & view their contact information. Our international sales representatives are readily available & eager to answer all inquiries regarding pricing, lead time, & ordering instructions as well as any other questions you may have.

Electrical & Physical Specifications:

A-Length:13.21mm (.520")
B-Diameter:5.08mm (.200")
Lead Dimensions: .0285" dia. X 1.400" long (min.)
Min Res. @ Max Power:.015Ω @ 1.25W
Min Res. @ Derated Power:.001Ω @ .1W
Temperature Range:-55°C to +275°C

SM-4 Series Engineering Attributes:

RESISTANCE & TOLERANCE
Standard: Any Ohmic value or decimal part of an Ohm desired from .015Ω to 100Ω with tolerances to ±.005%

Special: From .001Ω to .015Ω with tolerances to ±.1%

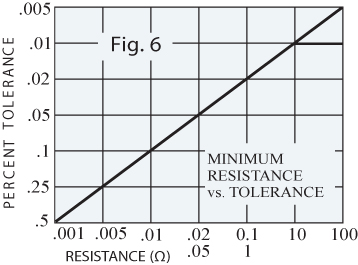

Refer to Fig. 6 for min. resistance vs. tolerance ratios.


TCR CHARACTERISTICS
Standard: 0±15 PPM/°C.

Special: 0±10 PPM/°C.
Please specify temperature span of operation.


STABILITY VS. TIME
To ±.001%/year @ +25°C. (No Load)


PROTECTIVE COATING SEAL
Solvent resistant coat with indelible marking


POWER RATING

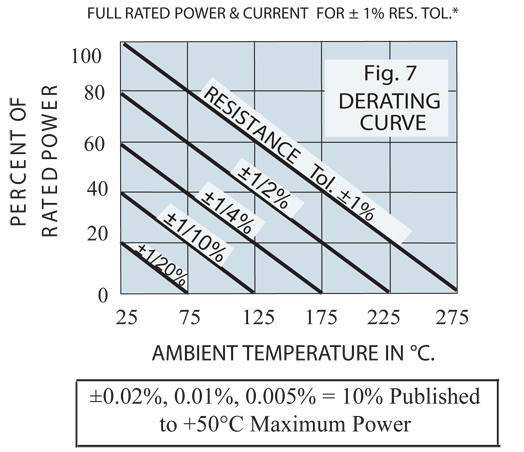

The standard minimum resistance at full power is based upon ±1% resistance tolerance @ +25°C. Derating is required for lower values, closer tolerances, and higher temperatures. Please refer to the Derating Table shown here & Fig. 5 below.

*Type SM-4 Derating Table:

For ±1% Res. tol. apply up to 100% of rated power at +25°C. derated to zero at +275°C.
For ±0.5% Res. tol. apply up to 80% of rated power at +25°C. derated to zero at +225°C
For ±0.25% Res. tol. apply up to 60% of rated power at +25°C.derated to zero at +175°C.
For ±0.1% Res. tol. apply up to 40% of rated power at +25°C. derated to zero at +125°C.
For ±0.05% Res. tol. apply up to 20% of rated power at +25°C. derated to zero at +75°C.
