Then let PRC custom manufacture your wire wound resistor, sensor, or shunt with some of the shortest lead times in the industry. Engineering samples can be supplied at no cost to you in 7-10 days for most jobs. Computer tracking charts are available for reference with certain part types. If you need a specific marking on your part(s) we will custom print your order with the marking you desire & at no additional cost to you. If needed, you can interchange the size, shape, lead dimension, wattage, voltage, current, Ω value, tolerance, & TCR characteristics with most part types. Visit our Compensator Series & see if one of our other parts from the same series will satisfy all your requirements. If you still do not find a part that meets the exact specifications your application requires, simply follow the link Contact/Request For Quote & fill in all known spec fields. One of our highly trained engineers will review your objectives and see if we can modify one of our standard parts to satisfy all your requirements. If you are unsure how to accurately complete this form, give us a call & someone from our sales department will be more than happy to assist you.
Our sales department is available to provide price, delivery, lead time & all other pertinent ordering instructions to companies within the U.S.A. If you wish to place an order in the United States, simply give us a call & ask for the Sales Department, our contact information is at the very top of every page. For companies outside the U.S.A., we have sales representatives in over 30 different countries to assist you. Click the link International Sales Representative Map to locate the sales representative nearest to your region & view their contact information. Our international sales representatives are readily available & eager to answer all inquiries regarding pricing, lead time, & ordering instructions as well as any other questions you may have.

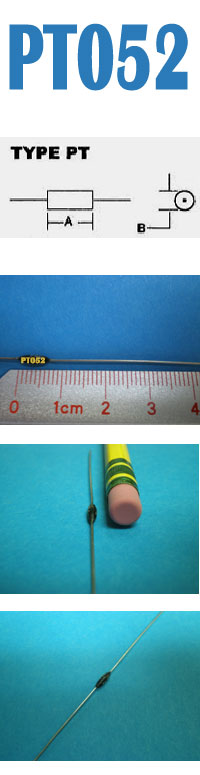

|Lead Dimensions:||.02" dia. X 1.5" long (min.)|

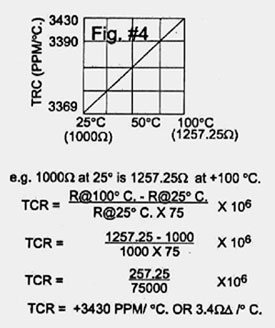

|Temperature Coefficient of Resistance (TCR*)|
|+80 ppm/°C||+3930 ppm/°C|
|+140 ppm/°C||+4300 ppm/°C|
|+400 ppm/°C||+4500 ppm/°C|
|+1400 ppm/°C||+5000 ppm/°C|
|+3500 ppm/°C||+6000 ppm/°C|
|*TCR based upon avg. PPM change in res./°C. from +25°C. to +100°C.|
