AT35 1K Ohm (std.) .1W Rectangular +3500 PPM Wire Wound Axial Compensator


AT35 1K Ohm (std.) .1W Rectangular +3500 PPM Wire Wound Axial Compensator

Technical Information

Mounting
Thru-hole
Resistance
1KΩ (Std) from1Ω to 50KΩ
Tolerance
0±1% (std.) to ±.05%
TCR Char.
+3500 PPM /°C.
Max Watts
.1
Max Volts
100
Lead Free
Yes
Temperature
-65°C. to +150°C.
Height
3.18mm (.125")
Length
9.14mm (.360")
Width
3.18mm (.125")
Stability
to ±.01% per year @ 25°C
Type
Rect. Axial
Lead Dimensions
.02" x 1" long (min.)

  • Detailed Images

  • Details and Order Info

  • Electrical & Physical Specs

  • Attributes & Derating Table

TCR CHARACTERISTICS AVAILABLE

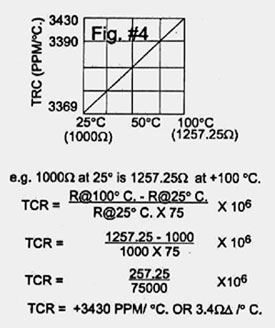

Temperature Coefficient of Resistance (TCR*)
+80 ppm/°C +3930 ppm/°C
+140 ppm/°C +4300 ppm/°C
+400 ppm/°C +4500 ppm/°C
+1400 ppm/°C +5000 ppm/°C
+3500 ppm/°C +6000 ppm/°C
*The TCR characteristic listed are based upon the average PPM change in resistance per degree C. between +25°C & +100°C

Body Dimensions:

H-Height 3.18mm (.125")
L-Length 9.14mm (.360")
W-Width 3.18mm (.125

Compensator Attributes:

LINEAR COMPENSATION

PRC's type PT/ST (+) TCR Characteristics +3500 PPM/°C. linear tracking temperature sensitive resistors help you develop the desired compensation for true RMS measurement
